Description

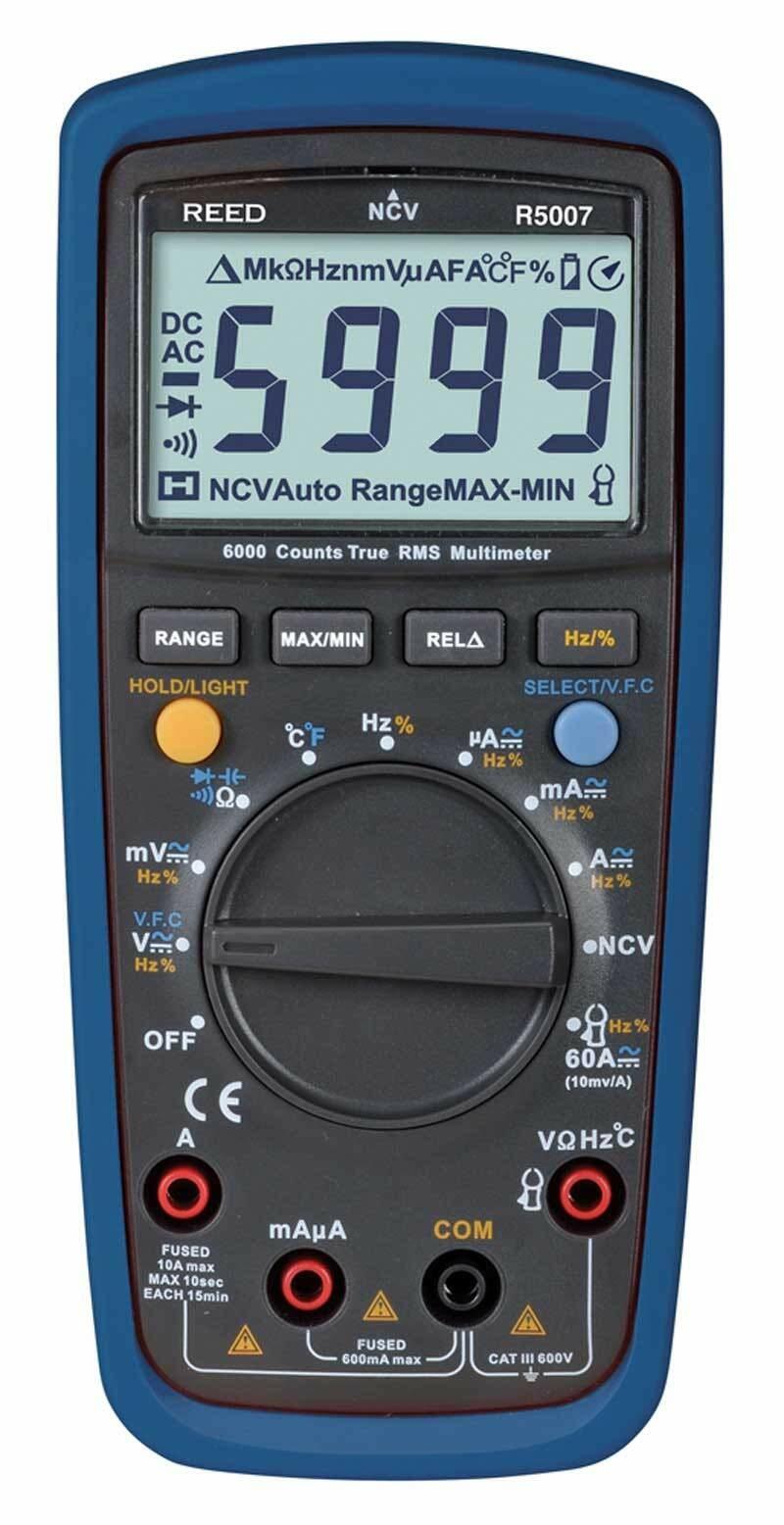

True RMS multimeter with built-in non-contact voltage (NCV) detector and 6,000 count backlit LCD display. This True RMS multimeter measures AC/DC voltage and current, resistance, capacitance, frequency and features a low pass VFC function to remove noise caused by variable frequency motors and drives. The R5007 also features a built-in non-contact voltage detector and Type K thermocouple probe for contact measurement. Features REED R5007 Specifications AC/DC Voltage Range AC: 60, 600mV, 6, 60, 600V DC: 60, 600mV, 6, 60, 600V Accuracy AC: 60, 600mV (0.5% rdg. + 2 dgt.) 6,60,600V (0.7% rdg. + 3 dgt.) DC: 60, 600mV (1.0% rdg. + 2 dgt.) 6,60,600V (0.8% rdg. + 3 dgt.) Resolution AC: 0.1, 1, 10mV, 0.1, 1V DC: 0.1, 1, 10mV, 0.1, 1V AC/DC Current Range 600, 6000A, 60, 600mA, 6, 10A Accuracy AC: 600,6000A/60mA, 600mA (1.0% rdg. + 3 dgt.) 6, 10A (1.2% rdg. + 3 dgt.) DC: 600,6000A/60.00mA, 600.0mA (0.7% rdg. + 2 dgt.) 6.000, 10.00A (1.0% rdg. + 3 dgt.) Resolution 0.1, 1, 10A, 0.1, 1, 10mA Resistance Range 600, 6, 60, 600k, 6, 60M Accuracy 600: (1.0% rdg. + 2 dgt.) 6,60,600k: (0.8% rdg. + 2 dgt.) 6M: (1.2% rdg. + 3 dgt.) 60M: (1.5% rdg. + 5 dgt.) Resolution 0.1, 1, 10, 100, 1, 10k Capacitance Range 9.999nF, 99.99nF to 999.9F, 9.999 to 99.99mF Accuracy 9.999nF: Under REL (4%+10 dgt.) 99.99nF to 999.9uF: (4.0% rdg. + 5 dgt.) 9.999 to 99.99mF: (10% rdg. (<2mF) Resolution 1pF, 10pf to 0.1F, 1F to10F Frequency Range 9.999Hz to 9.999MHz Accuracy (0.1% rdg. + 4 dgt.) Resolution 0.001Hz to 0.001Mz Temperature Range -40 to 1832F (-40 to 1000C) Accuracy (2.5% rdg. + 5F) (2.0% rdg. +3C) Resolution 1F, 1C General Specifications Range Selection Autoranging/Manual True RMS Yes Display 6,000 count LCD Display Display Hold Yes Max/Min Yes Relative Mode Yes Diode Test Yes Backlit Display Yes Continuity Check Audible signal if resistance 10 Duty Cycle Yes (0.1 - 99.9%) Non-Contact Voltage Detector Yes Kick Stand Yes Auto Power Off Yes (after 15 minutes) Power Supply 2x AA Batteries Low Battery Indicator Yes Fuse Protection Yes Replaceable Test Leads Yes Overvoltage Category CAT. III 600V Product Certifications CE Operating Temperature 41 to 104F (5 to 40C) Storage Temperature -4 to 140F (-20 to 60C) Dimensions 6.9 x 3.2 x 1.9" (175 x 80 x 49mm) Weight 13oz (370g) What's included with the REED R5007 True RMS Digital Multimeter Test Leads Thermocouple Wire Probe (Type K) with attached adapter Batteries How To: Test for Continuity with a Multimeter If you're not sure of the continuity of your circuit, you may need to perform a test with a multimeter. For the purpose of this video, we'll be using the R5008 Multimeter. These steps will work for most multimeters. Model: R2990 Model: R1000 Model: LS-181 Model: LS-182 Model: R2920 Model: R2930 Model: R2940 Model: R2950 Model: TP-01 Model: R2970 Model: R2980 Model: R2960 Model: R5900 Model: CA-05A Model: CP-09 Model: R1020 Multimeters Multimeters
FEATURES
- Measures AC/DC voltage and current, frequency, resistance, capacitance and temperature
- Built-in non-contact voltage detector and double molded plastic housing
- Diode check and continuity functions
- Relative and data hold functions
- Backlit LCD and low battery indicator
- Cat. III 600V safety rating
- True RMS Digital Multimeter
- Test Leads
- Thermocouple Wire Probe (Type K) with attached adapter
- Batteries
- Testing batteries
- Testing household wiring
- Testing electric motors
- Testing power supplies
