Description
RJ45 Video Balun is not waterproof. For indoor use only. Make sure the RJ45 for camera side and DVR side are the same standard. Mismatch may result in damage of the camera and devices.
Feature:
1.NTSC,PAL,AND SECAM video formats.
2. 60db crosstalk and noise immunity.
3. Compact size and easy installation.
4.Built-in transient suppression protection.
Technical Specifications:
1.Frequency response:DC-8MHZ;
2.Attenuation:0.5dB typ;
3.CMRR(Common Mode Rejection Ratio):60DB;
4.Impedance: BNC-75Ohms, RJ45-100Ohms;
5.Working temperature:-10~70 Census Degree;
6.Storage temperature:-30~70 Census Degree;
7.Humidity:0-95%;
8.Material:ABS Plastic.
FEATURES
- Passive Power video ,Power video & Date(Audio) Balun transceiver, Compatible with all HD-TVI/HD-CVI/AHD ,Gold Plated BNC (better transmission quality)

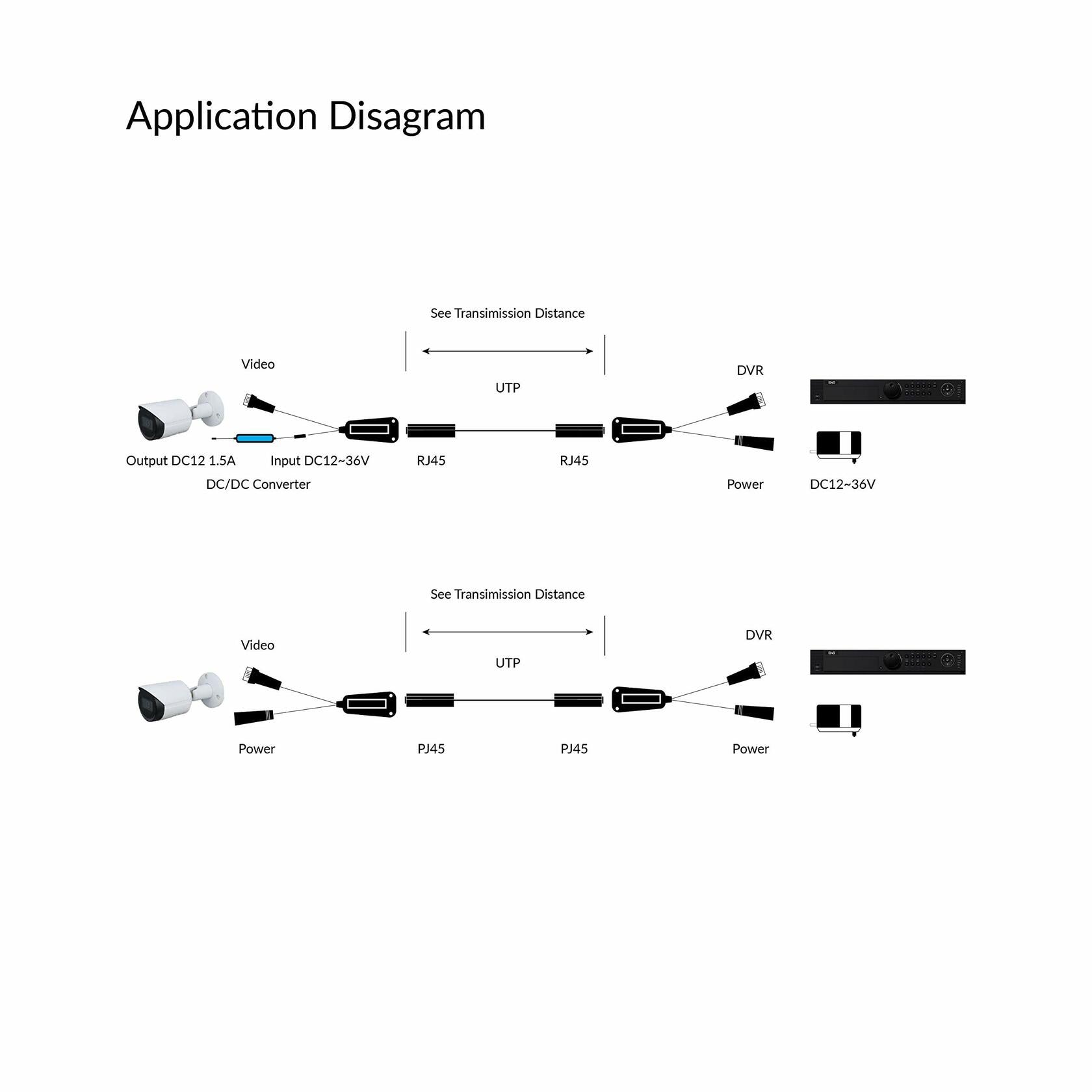

- Power-Video-Audio/Data signals are routed via UTP and RJ45,30-50% wire costs saved. The unit is a passive (non-amplified) device that allows the transmission of real-time monochrome or color video over Unshielded Twisted Pair (UTP) telepgone wire
- Toolless,Install in seconds,Enable unparalleled common interferences rejection,Built-in transient protection. LED indicate whether working (green light) or not working(yellow light).
- Long Distances Transmission,Transmit CCTV power and video over 200M/820ft using CAT5e/Cat6 Cable

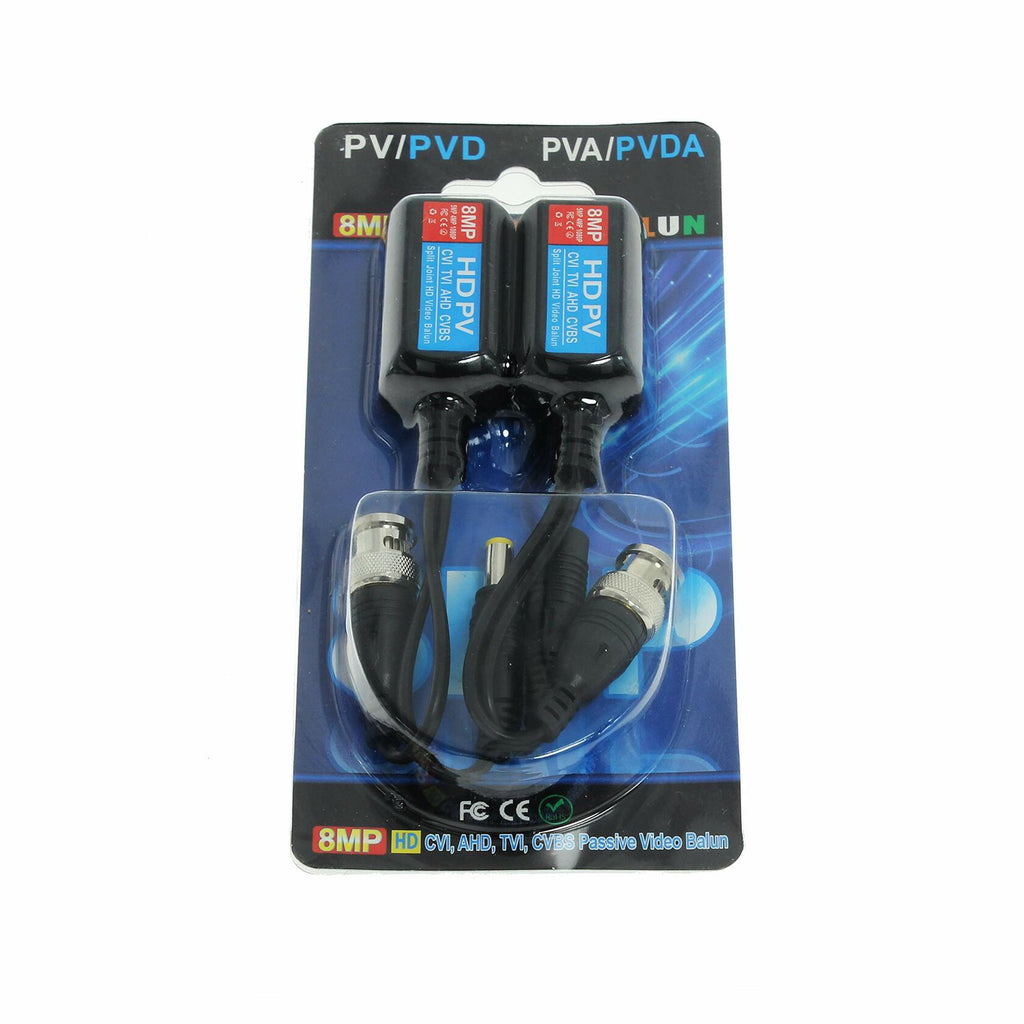

- Package:1 Pair HD Video Balun Transceiver support 4K Camera
